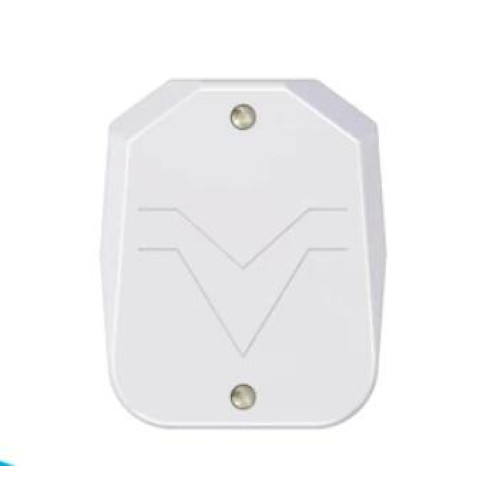

Active 433MHz RFID Tag for Tools Management

Product Code: HC-PA58
Availability: 2-3 Days

$5.50

Company Profile

Quanzhou Hecere Electronic Co., Ltd.

Location: Fujian, China
Business Type: Manufacturer
Main Products: Plastic Business/Gift/Membership Card, Membership Cards Promotional Cards

For product pricing, customization, or other inquiries:

Description

Poduct summary

HC-PA58 tool tag is an electronic tag mainly designed for tool management. The electronic tag
cooperates with the read-write device through the 2.4G protocol, which can complete the
monitoring, tracking, and alarm of the specified tool. The tool tag is fixed on the tool with a
steel cable and has a physical tamper-resistant function.

Product Feature

1. Tri-band support: 2.4G signal transmission, 125K low frequency activation, 13.56MHz identification;
2. Reading method: read-only;
3. High speed recognition: the highest recognition speed can reach 60 km / h;
4. High anti-interference: No special requirements for various interference sources on site;
5. Anti-electromagnetic interference: 10V / m0.1 ~ 1000MHz AM AM wave;
6. Anti-suddenness: Advanced anti-collision technology can identify more than 200 tags at the same time;
7. Security: physical anti-disassembly, anti-drop and anti-impact, no mechanical failure, fully sealed structure, anti-harsh environment, unauthorized removal or destruction, the system triggers an alarm

Datasheet

Physical Parameter
Size	55mm×45mm×16mm
Material	ABS+PC
Color	White
Weight	20g

Environmental Parameters
Working Humidity	<95%
Working Temperature	-25 ~ 70ºC
Storage Temperature	-40 ~ 85ºC
Waterproof	No

Performance parameter
Static (standby) working current	13uA
Operating Voltage	3V
Battery	CR2450
Working Current (Transmit signal)	17mA
Battery Life	2Year
Collision Ability	>200PCS
2.4G Parameter	2.45GHz, 250K rate, FSK modulation
Transmit Time	Active 1 time in 20 seconds / Passive 3 times per second
Transmit Power	4dBm (factory setting)
Working Distance	80m
125Khz/13.56Mhz	Optional
125Khz Working Distance	<4m
13.56Mhz Working Distance	0-3cm

Precautions

1. Do not put it into the fire or store it in a high temperature environment over 85 ºC;
2. Do not use sharp tools to damage;
3. Do not place it near corrosive articles;
4. Do not change the parameters, specifications and models of components during maintenance;
5. Do not put the tag in a closed space;
6. Do not collide with the tag violently;
7. Do not use heavy objects to squeeze the tag.

Tags: HC-PA58
