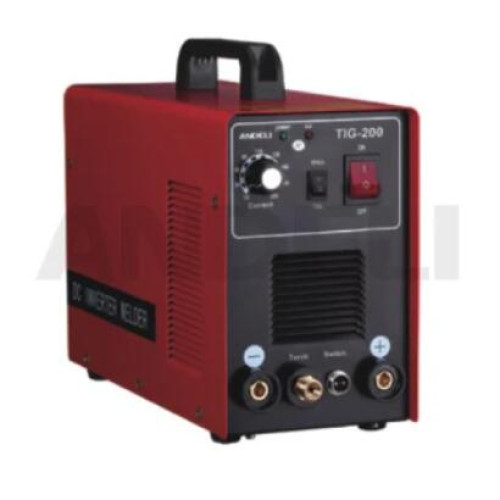

Inverter DC TIG/MMA Welding Machine (MOSFET type)

Product Code: TIG/MMA
Availability: 2-3 Days

FOB Price: Negotiable | Get Latest Price

Company Profile

Andeli Group Co., Ltd.

Location: Zhejiang, China
Business Type: Manufacturer
Main Products: Breakers, Contactors, Relays, Push Button, Current Transformer, Transformer

For product pricing, customization, or other inquiries:

Description

Inverter DC TIG/MMA Welding Machine (MOSFET type)

Why choose us?
1.20 years - Andeli Group Co., Ltd is founded in 1993.
2.12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3.300 cooperating companies - We have over 300 cooperating companies.
4.3000 workers - We have over 3000 workers.
5. USD150, 000, 000 - The total assets is USD150, 000, 000.
6.235, 000 square meters - The area of Andeli is 235, 000 square meters.
7. Certification - We have passed ISO9001: 2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA...
Application
- Support TIG & MMA two kinds of welding
- MOSFET inverter circuit, hogh frequency arc starting
- Compact, portable, high effective, low power sonsumption
- Automatic compensation for voltage fuctuation, can work against input voltage fuctuation (V+/-15%)
- Small splashing, great penetration, easy and simple to operate and aesthetic appearance of weld seam
- Over-voltage protection, undervoltage protection, over current protection, over load protection

Mode	TIG-160	TIG-200	TIG-250	TIG-315	TIG-400	TIG-500
Type	IGBT module
Rated input voltage (V)	single phase AC220+/-15%		three phase AC380+/-15%
Rated frequency (Hz)	50/60
Rated input power (KVA)	5.3	7	7.9	13	17	24
Rated input current (A)	24	31.8	12	19.5	25.4	35.7
Rated output	TIG/MMA: 160A/26.4V	TIG/MMA: 200A/28V	TIG/MMA:220A/28.8V	TIG/MMA:315A/32.6V	TIG/MMA:380A/35.2V	TIG/MMA:480A/39.2V
Output current (A)	20-160	20-200	20-220	20-315	20-380	20-480
No-load voltage (V)	56+/-5	56+/-5	60+/-5	60+/-5	60+/-5	60+/-5
Rated duty cycle (%)	60
Effciency (%)	85
Power factor	0.85
Protection grade	IP21
Insulation grade	F
Net weight (KG)	8.5	9.4	17.5	25.3	31.9	32.7
Gross weight (KG)	11.5	13.2	22	30.9	38.5	39.7
Housing of machine	iron
Dimension of machine (mm)	400x155x300		500x210x370	580x330x440
Packing	Carton
Dimension of packing (mm)	477x271x320	507x271x320	560x270x460	640x400x510
